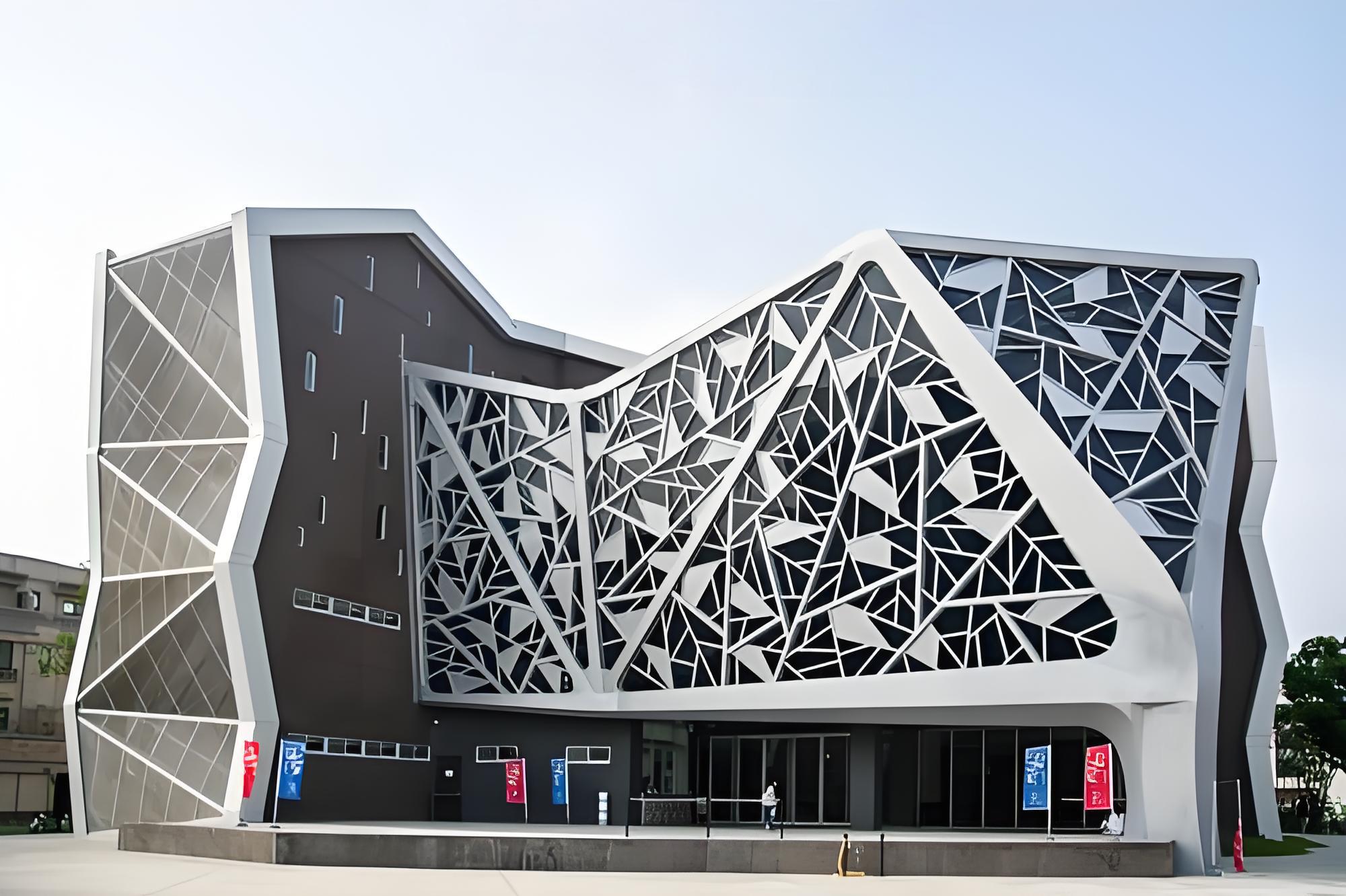

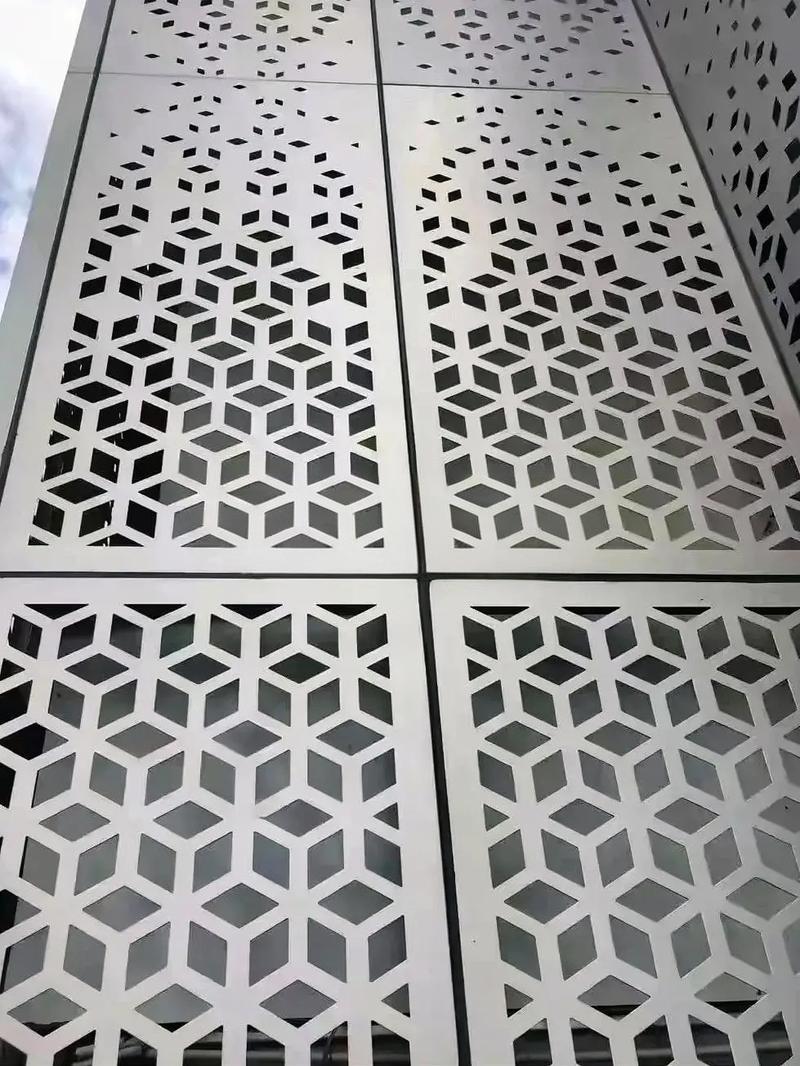

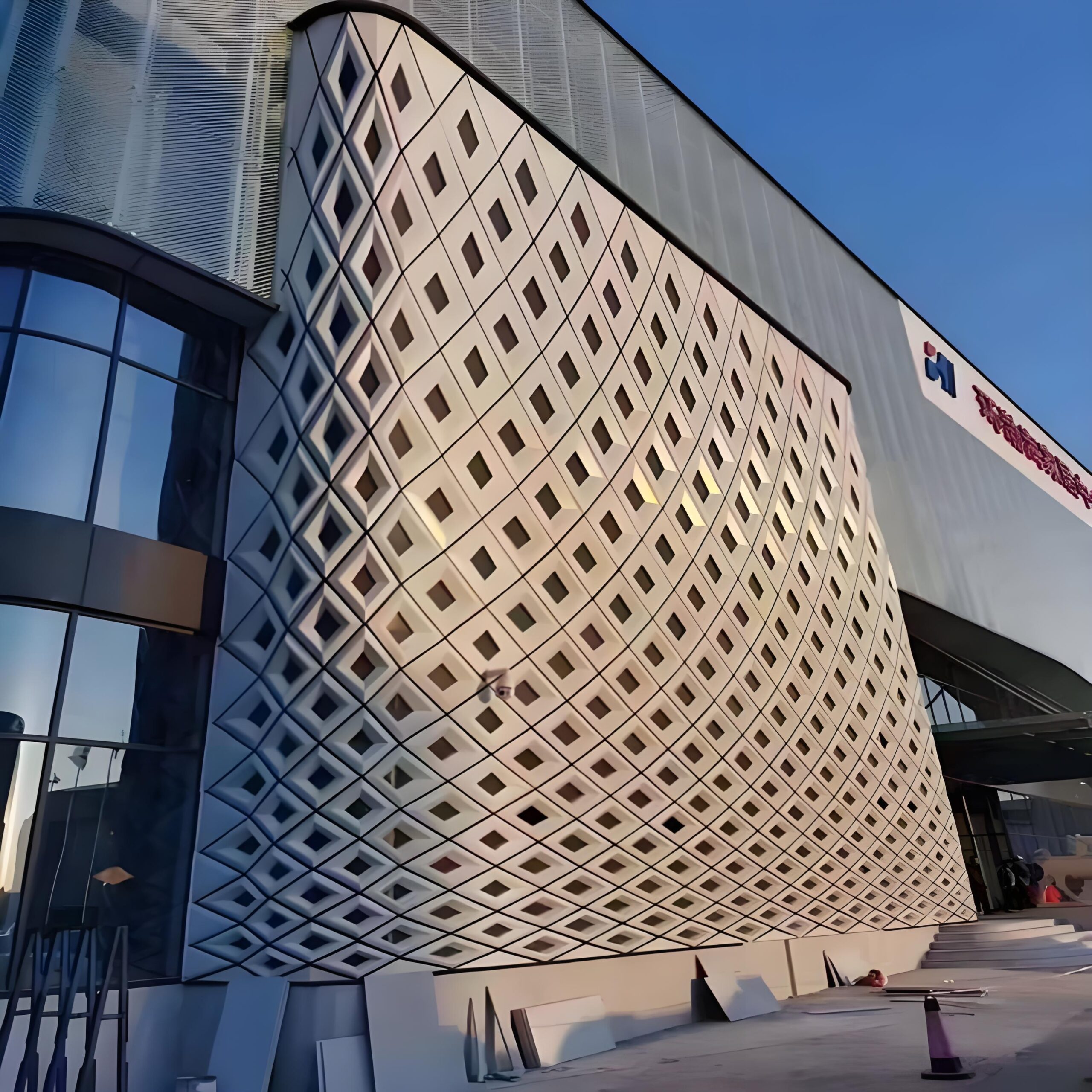

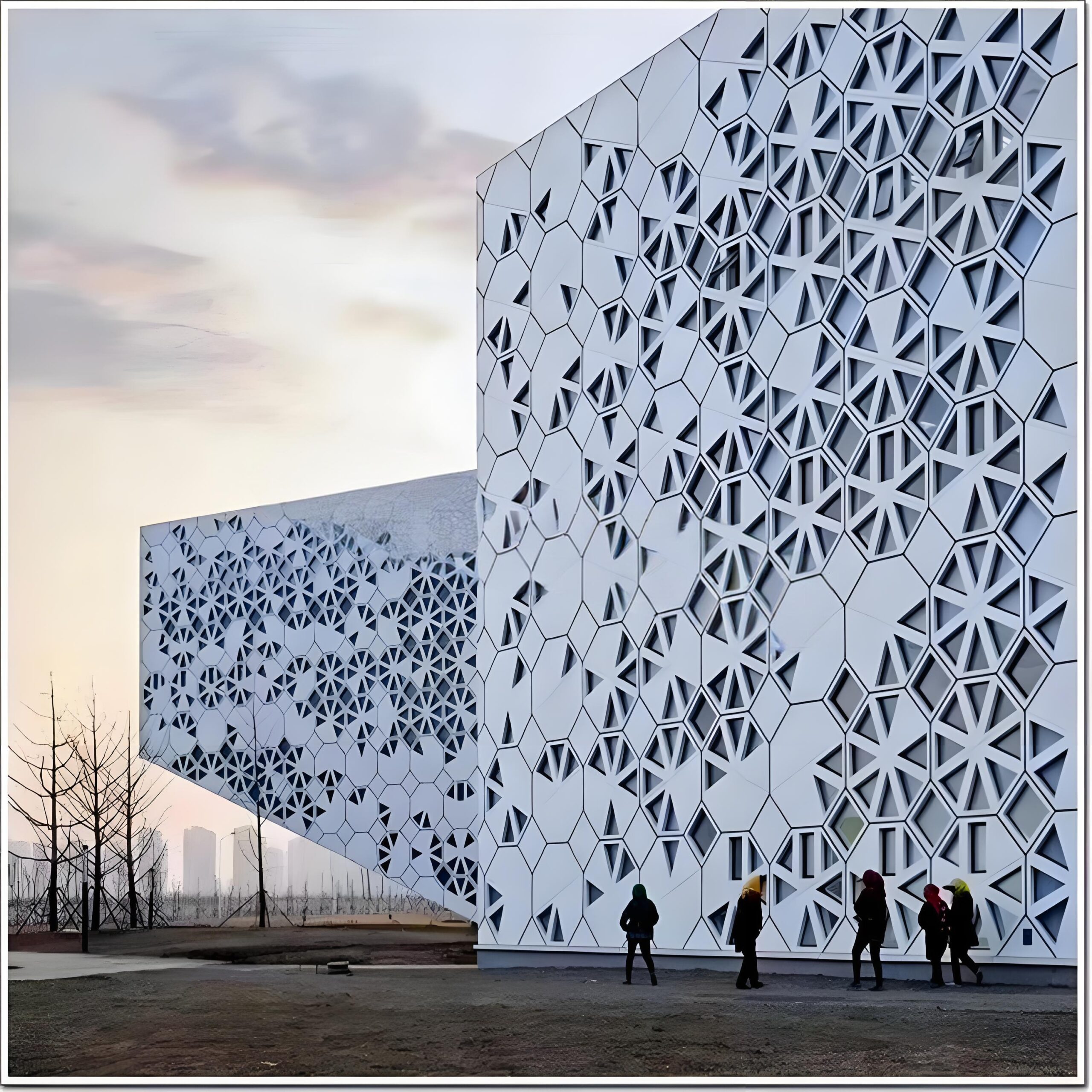

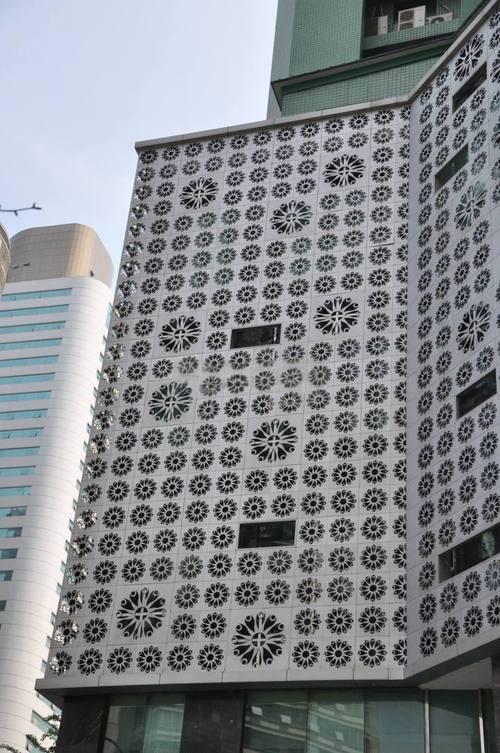

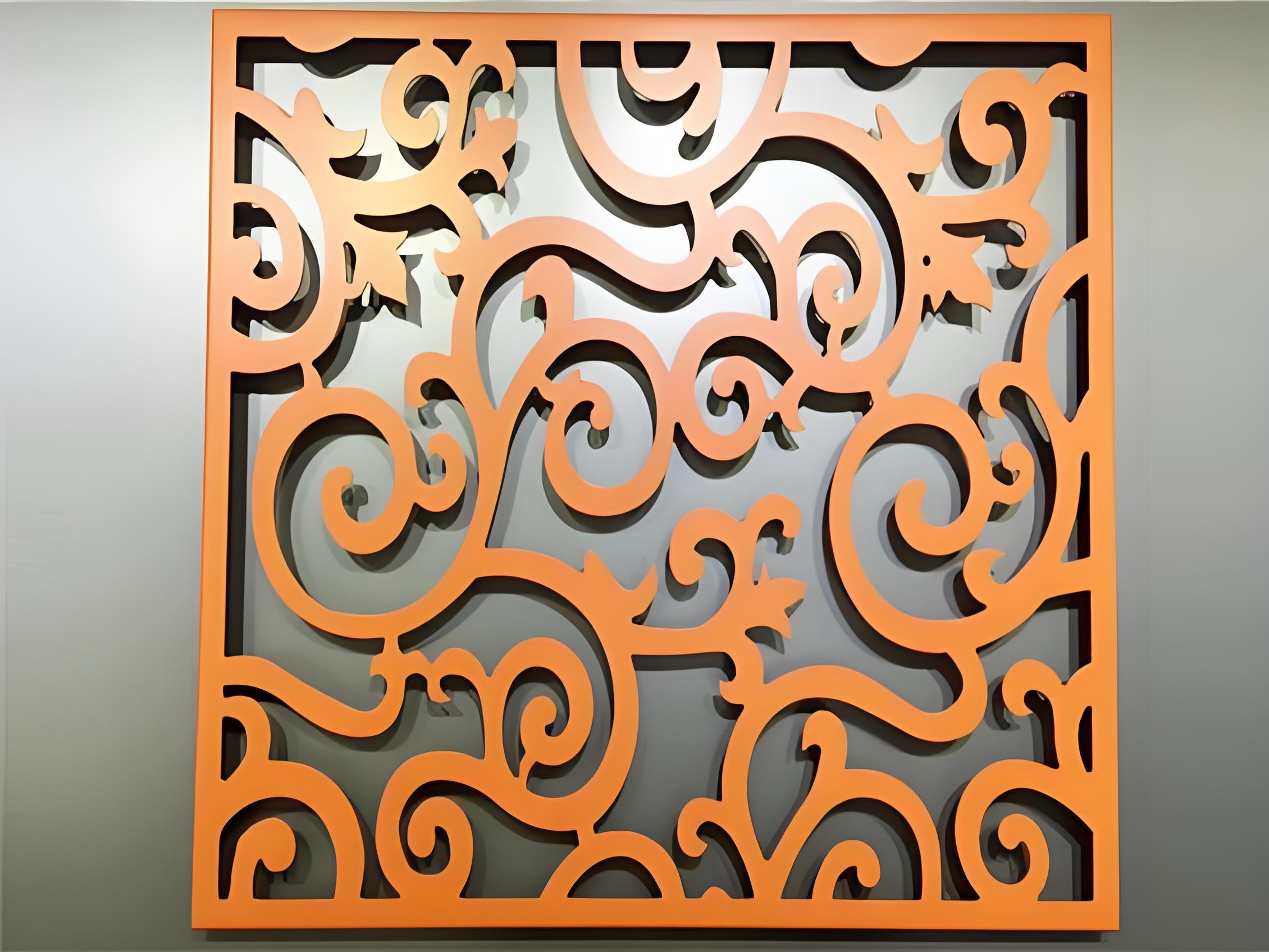

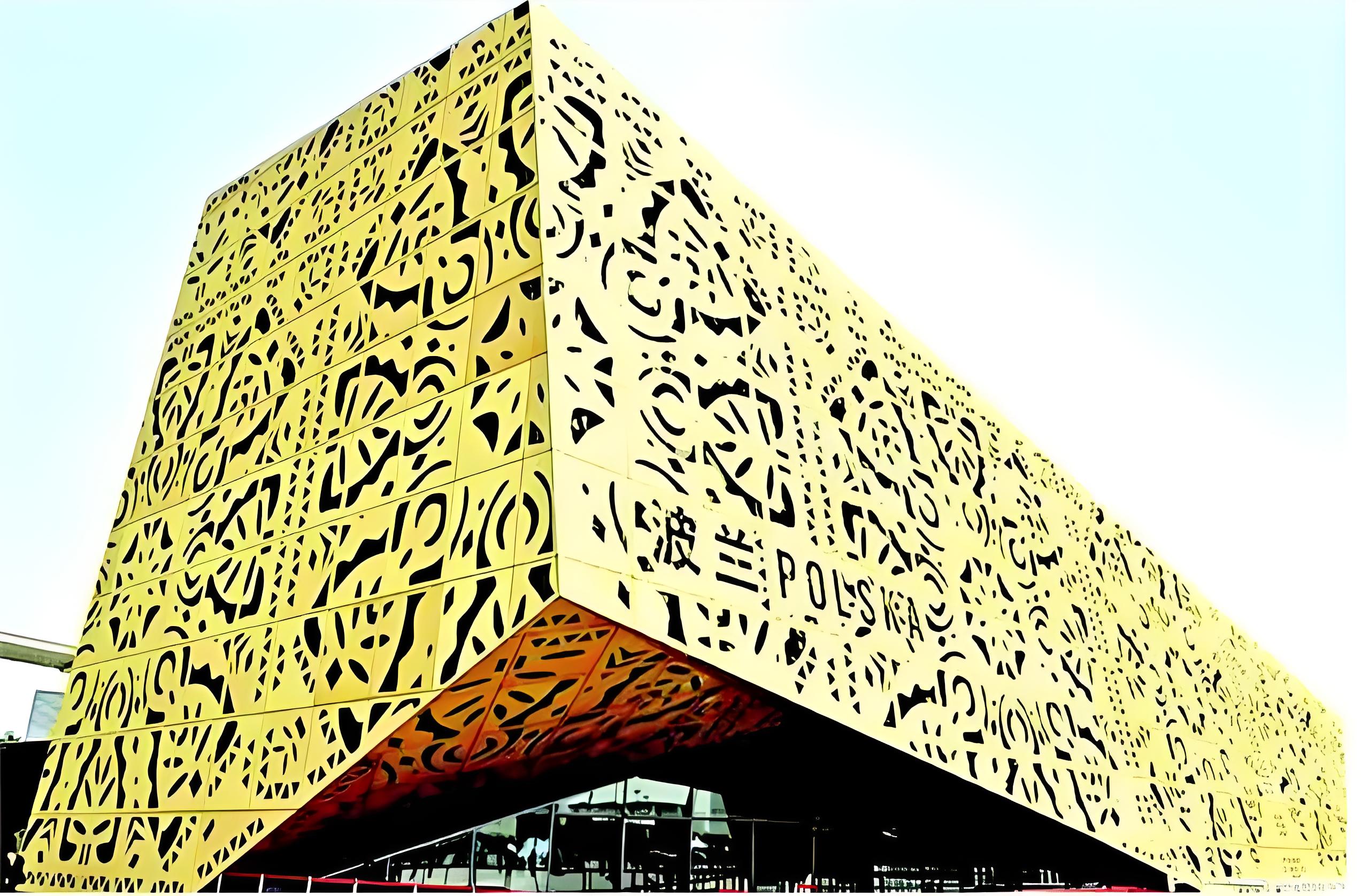

Laser Cut Aluminium Screens for Project Drawings

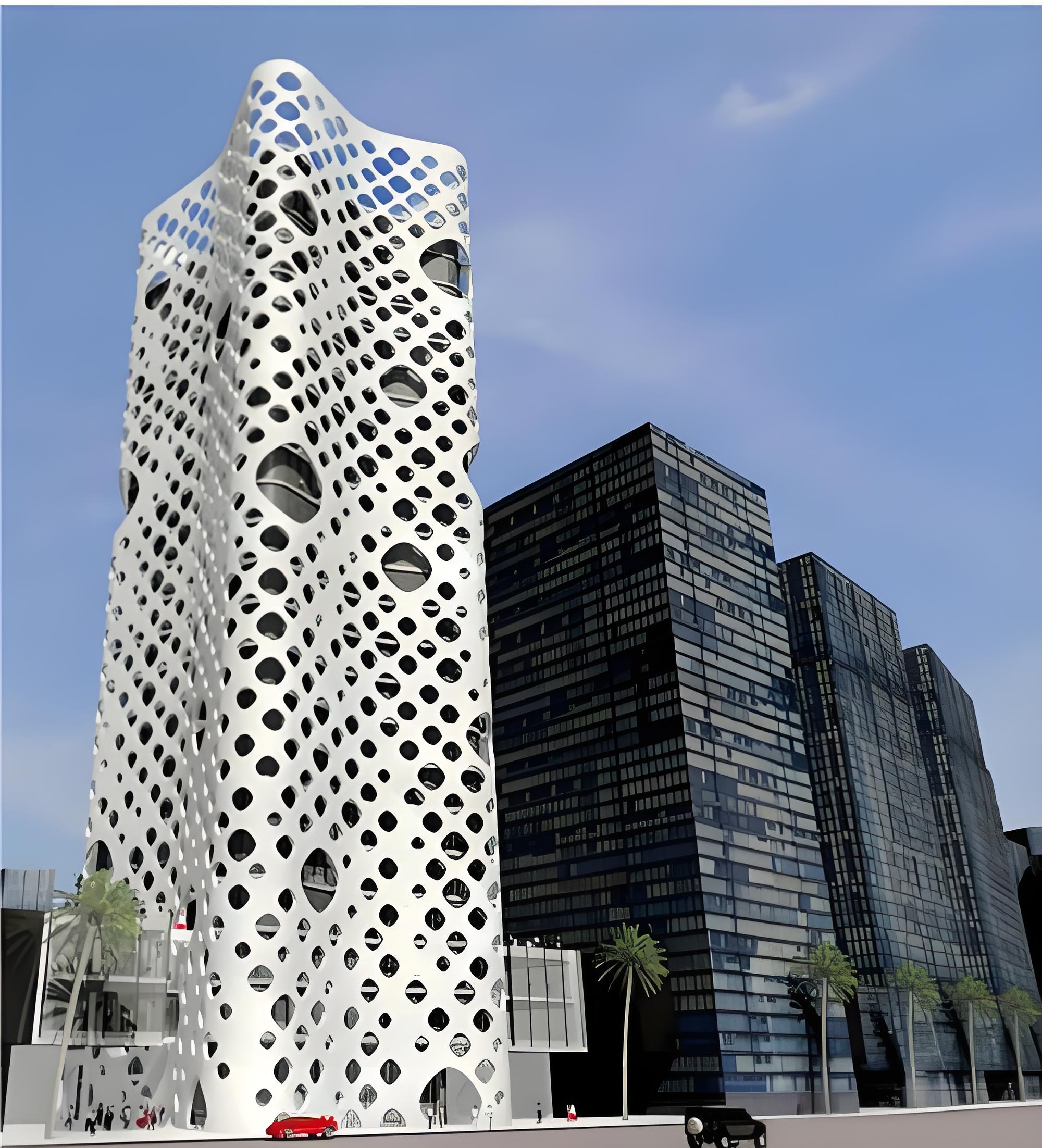

PUNCHUK supplies custom laser-cut aluminium panels for decorative facade screens, partitions, balcony screens and interior feature walls. Send the panel layout and pattern artwork together so the quotation can refer to the same panel sizes, quantities and drawing revision.
A reference image can help explain the design. Mark it as a reference if the cut pattern, panel dimensions or fixing details are still open. The fabrication scope, finish, packing and delivery terms need to be confirmed in the written quotation.
What to Send for a Screen Panel Quotation
- CAD/PDF panel layout, panel marks, dimensions and quantities.
- Pattern artwork or a reference image, with the drawing revision and approval status.
- Required thickness and alloy, or a clear request for review if these are not decided.
- Required open-area ratio, if specified, plus folded edges, frame and fixing details shown on the drawings.
- Finish, colour and sample requirements; state whether the panels are for an exterior or interior location.
- Project stage, delivery country, destination and target date.
Confirm the Pattern and Supply Scope
Identify which panels repeat and which change at corners, openings or boundaries. Ask for any unresolved cutting, edge, frame or fixing details to be listed before approving the order. State whether the request is for panel supply only or also includes specified supports and accessories.

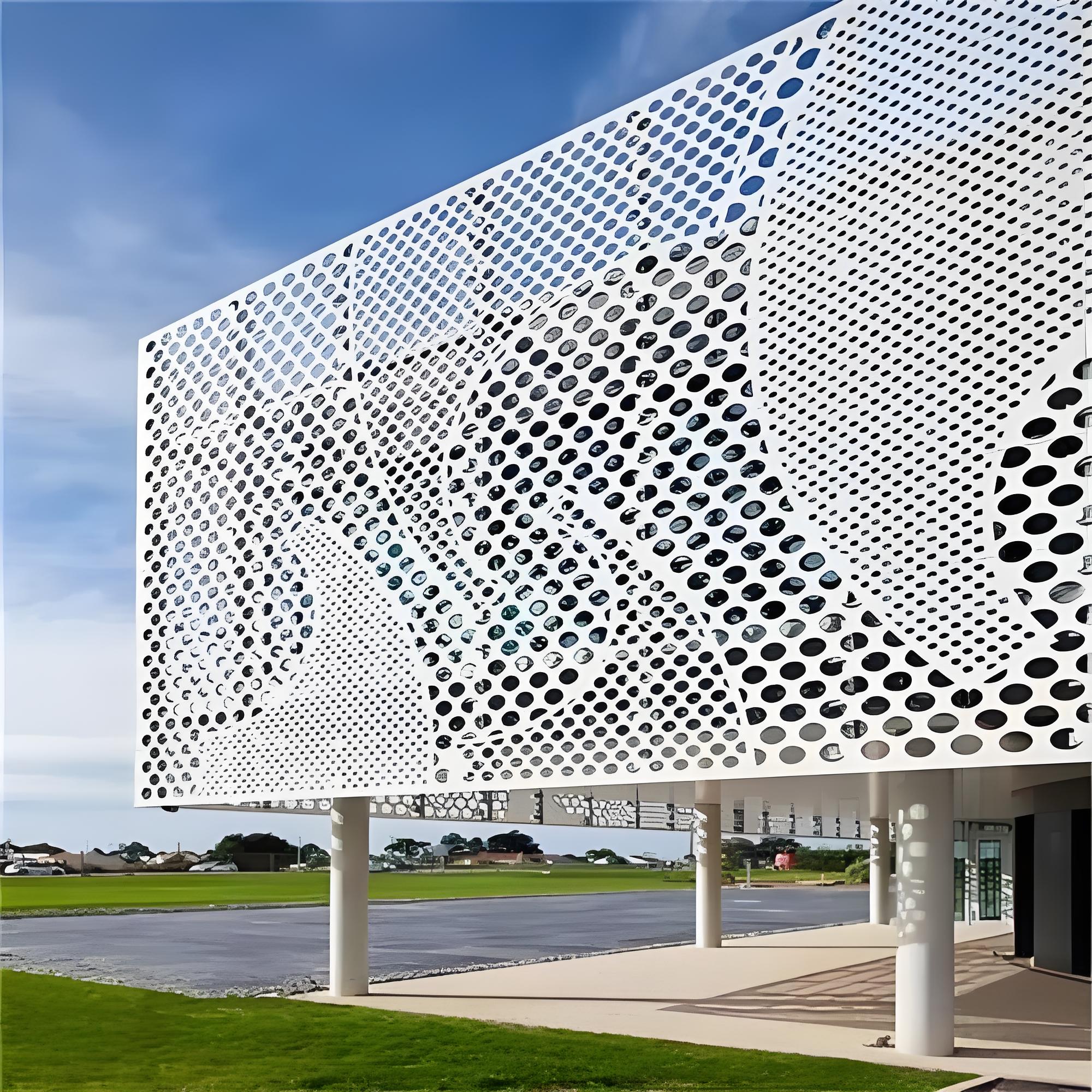

For a perforated facade design, use the perforated facade panel guide. To prepare a comparable supplier enquiry, follow the solid aluminum panel RFQ checklist.
Material | Aluminum alloy（1100/3003） | More material choice can contact with us |
Surface Treatment | Powder coating, Roll coating, Fluorocarbon | More surface treatment can contact with us |
Shape | OEM, ODM |
|
Certificate | ISO、SGS |
|
Packaging Details | Carton, Wooden boxes |
|
Lead Time | About 30days after receiving deposit |
|
Application | Aluminum veneer is gradually becoming a strong member in the architectural decoration industry, especially widely used in the field of indoor and outdoor curtain wall. | |
Advantage | 1. Light weight, high strength, convenient construction and installation 2. Wide selection of color Resist shock, water proof, fireproof, anti-dirty and anti-corrosion | |
Product specification
Standardized aluminum veneer | ||
Size （mm） | Thickness（mm） | Advantage |
OEM,ODM | 1.5-5.0 | 1：Standard size, mass production and fast lead time; 2：Simple design, no need for professional designer on-site measurement, just simple measurement of the overall size, manufacturers can deepen the typesetting order production; 3：quick installation, uniform size, different number mark, greatly saving the time. 4: low error rate, effectively shorten the construction period; |
Special specifications can contact with us | ||
Customized aluminum veneer | ||
Size（mm） | Thickness（mm） | Advantage |
All non-standard customization | 1.5-5.0 | 1: flexible processing, plate size arbitrary custom, can be processed into a variety of modeling, Angle can be processed into Angle, arc, hyper boloid modeling. 2: According to the customer’s drawings, the manufacturer designs the on-site measuring ruler, and can customize any pattern to achieve personalized, iconic customized products. |
